SUNFUTURE 1000W Solar Panel Energy Off Grid Power System

$5,240.08 USD

~~$0.00 USD~~ $5,240.08 USD

Sale Sold out

Free shipping across the continental U.S.

Solar Power (W) 1KW

System Type Off-Grid Solar System

FREE STANDARD SHIPPING

Contiguous US + DC. Estimated delivery: 4–19 business days. Details

Shipping & delivery

Free standard shipping to the 48 contiguous US states and Washington, DC. Allow 1–3 business days for handling and 3–16 business days in transit. Delivery estimates are not guaranteed.

Read the full shipping policy

Returns & order support

Eligible unused items in their original packaging can be returned within 30 days. Change-of-mind returns incur a 25% restocking fee and return shipping costs. Damaged, defective or incorrect items are handled differently. Report damage within 48 hours.

Read the full return policy or email support@homeutilitygear.com.

SUNFUTURE 1000W solar panel energy off grid solar power system

Pure sine wave output, low frequency toroidal transformer lower loss
Built-in MPPT or PWM controller optional
Office and public facilities, household system, network transmission equipment
Provide stable, reliable and safe solutions for 1-40KW solar power system

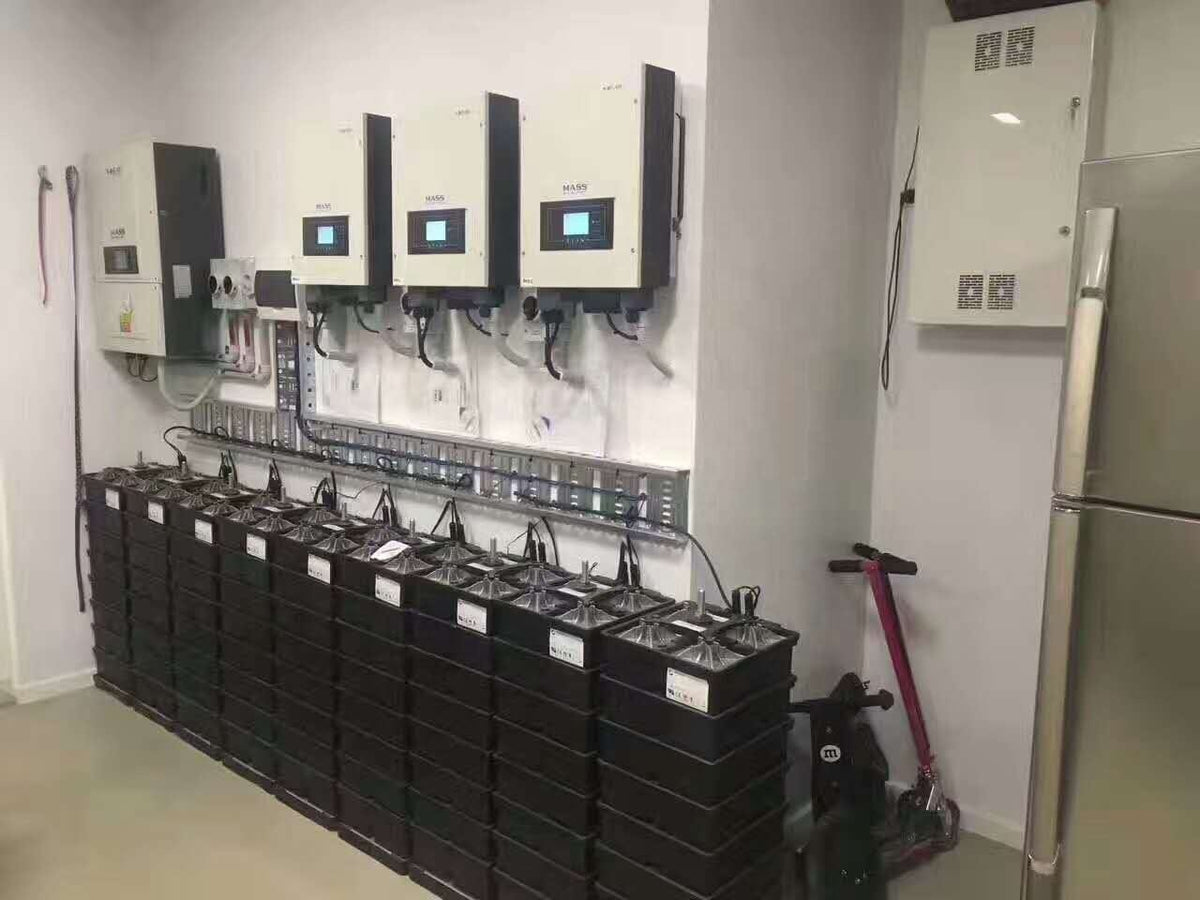

Positive feedback from EU client - Sunfuture 5KW hybrid solar power system

positive feedback

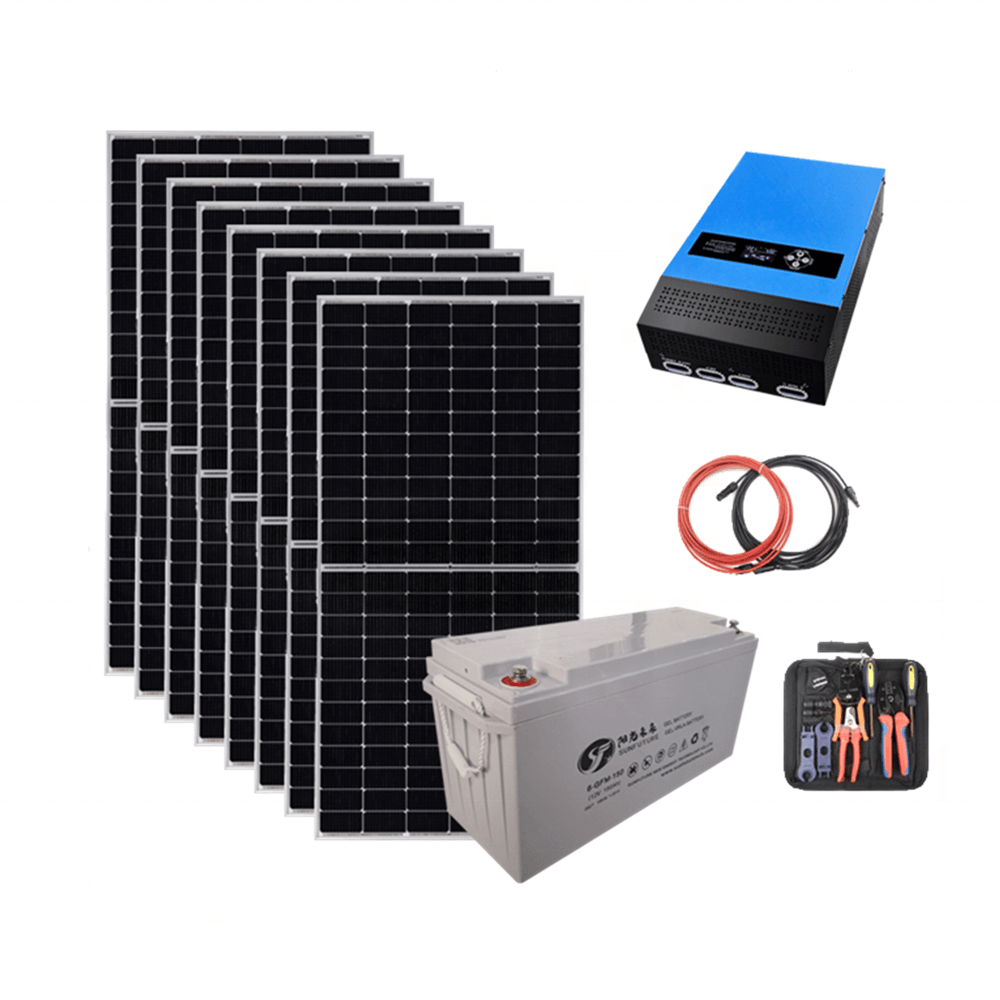

1KW solar energy storage systems configuration

SUNFUTURE offers 1KW-100KW off grid solar power system solution for home use & commercial

PURE SINE WAVE OFF GRID INVERTER

Pure sine wave output, build in PWM charge controller
Low frequency toroidal transformer lower loss
Intelligent LCD integration display
AC charge current 0~30A adjustable, three working modes selectable
Added fault code query function, easy to monitor the operation in real time
Supports diesel or gasoline generator, adapt any tough electricity situation
Combine industrial and home usage, wall-mounted design, convenient installation

Model LW-		10212/24	20212/24/48		30224/48	40224/48	50248	60248
Rated power		1000w	2000w		3000w	4000w	5000w	6000w
Battery	Rated voltage	12/24V	12/24/48V		24/48V	24/48V	48V	48V
	Charge current	30A(Default)-C0~C6
Input	voltage range	85-138VAC / 93-150VAC / 170-275VAC / 186-300VAC
	Frequency	45-65Hz
Output	Voltage range	Inverter Output:110VAC / 115VAC/120VAC / 220VAC / 230VAC / 240VAC±2% Mains Output:110VAC /115VAC/ 120VAC / 220VAC / 230VAC / 240VAC±10%
	Frequency	Inverter Output: 50/60HZ±1% ; Mains Output: Automatic track
	Efficiency	≥85% (80% Resistive load)
Output waveform		Pure sine wave
Conversion time		≤4ms(Typical load)
Mode		DC Mode / AC Mode / ECO Mode
Display		LCD
Communication		RS232/RS485(Optional)
Cooling method		Temperature control fan cooling
Protection		Overload / overcurrent / short circuit / over temperature
Temperature		-10℃-40℃
Noise		≤55dB
Machine size: L x W x H		550243175				570261199
Package Size: L x W x H		605305270				625320295
Net weight		11	19	20.5		22	24	26
Gross weight		12.5	20.5	22		24	26	28
LW-T series built-in PWM controller
Rated current		20A/30A/40A/50A/60A
Input voltage range		12V: 15-50VDC; 24V:30-50VDC; 48V:60-100VDC
Maximum input power		20A:(12V:280w; 24V:560w; ) 30A:(12V:420w; 24V:840w; 48V:1680W) 40A:(12V:560w; 24V:1120w; 48V:2240W) 50A:(12V:700w; 24V:1400w; 48V:2800W) 60A:( 24V:1680w; 48V:3360W)
